Pre-requisites

Safety Guidelines (see B2 Manuals).
Power On Powering-on.
Network Interface Network Interface.
Installation Installation.

Attention

Read this document carefully! In case of doubt, consult specialists, experts, or manufacturers of the assemblies used. The robot must not be operated before all uncertainties are clarified. For further assistance, refer to the guides below or contact a specialist.

Important: Contact information is available in the RMA/ Support Section.

Warning: Do not allow untrained individuals or those unfamiliar with robotics or these instructions to operate the robot. Improper use of robots is dangerous.

This guide will walk you through the process of setting up and configuring the Unitree B2 robot, including network configurations, SSH access, internet setup, software installation and various operational controls. Follow the steps below carefully to ensure proper operation.

Autostart

Humble

All ROS2 drivers for the B2W developed by MYBOTSHOP operate with the environment variable ROS_DOMAIN_ID=10. The drivers start automatically on boot using robot_upstart services.

Note

Please ensure the emergency stop is released before powering on the robot. The B2 services will start automatically after boot (approximately 1-2 minutes).

sudo systemctl status b2-hardware
sudo systemctl status b2-webserver

List all B2 services:

systemctl list-units --type=service | grep b2

Service Name	Launch File	Auto-Start
b2-hardware	hardware.launch.py	Yes
b2-statepublisher	state_publisher.launch.py	Yes
b2-domain-bridge	bridge.launch.py	Yes
b2-front-video	front_video.launch.py	Yes
b2-rear-video	rear_video.launch.py	Yes
b2-twistmux	twistmux.launch.py	Yes
b2-webserver	webserver.launch.py	Yes
b2w-description	b2w_description.launch.py	Yes
b2-livox-mid360	livox_mid360.launch.py	Yes
b2-pan-tilt	dynamixel.launch.py	Yes

# Start/stop/restart service
sudo systemctl start b2-<service_name>
sudo systemctl stop b2-<service_name>
sudo systemctl restart b2-hardware

# Enable/disable service at boot
sudo systemctl enable b2-<service_name>
sudo systemctl disable b2-<service_name>

# Reload systemd after config changes
sudo systemctl daemon-reload

# View recent logs for a service
journalctl -u b2-hardware -n 50

# Follow logs in real-time
journalctl -u b2-webserver -f

# View logs since last boot
journalctl -u b2-hardware -b

Run the startup installer to configure all systemd services:

ros2 run b2_bringup startup_installer.py

This installs services using robot_upstart with:

ROS Domain ID: 10
RMW Implementation: CycloneDDS
Workspace setup: /opt/mybotshop/src/mybotshop/b2_bringup/config/setup.bash

Variable	Default	Description
B2_NS	b2_unit_001	Robot namespace
ROS_DOMAIN_ID	10	ROS 2 Domain ID
B2_DESC	1	Enable B2 description
B2_Z1	0	Enable Z1 arm in URDF

Note

Replace b2_unit_001 with your robot’s namespace.

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W uses robot_upstart to manage ROS 2 nodes as systemd services.

Service Name	Description
b2-hardware	Core hardware interface (driver, camera, LiDAR, Dynamixel)
b2-webserver	Web interface for remote control

# Check service status
systemctl status b2-hardware
systemctl status b2-webserver

# View logs
journalctl -u b2-hardware -f

# Stop service
sudo systemctl stop b2-hardware

# Start service
sudo systemctl start b2-hardware

# Restart service
sudo systemctl restart b2-hardware

# Disable auto-start
sudo systemctl disable b2-hardware

# Enable auto-start
sudo systemctl enable b2-hardware

Use the robot_upstart package:

ros2 run robot_upstart install b2_bringup/launch/hardware.launch.py \
  --job b2-hardware \
  --rmw rmw_cyclonedds_cpp \
  --symlink

ros2 run robot_upstart uninstall b2-hardware

Webserver

Humble

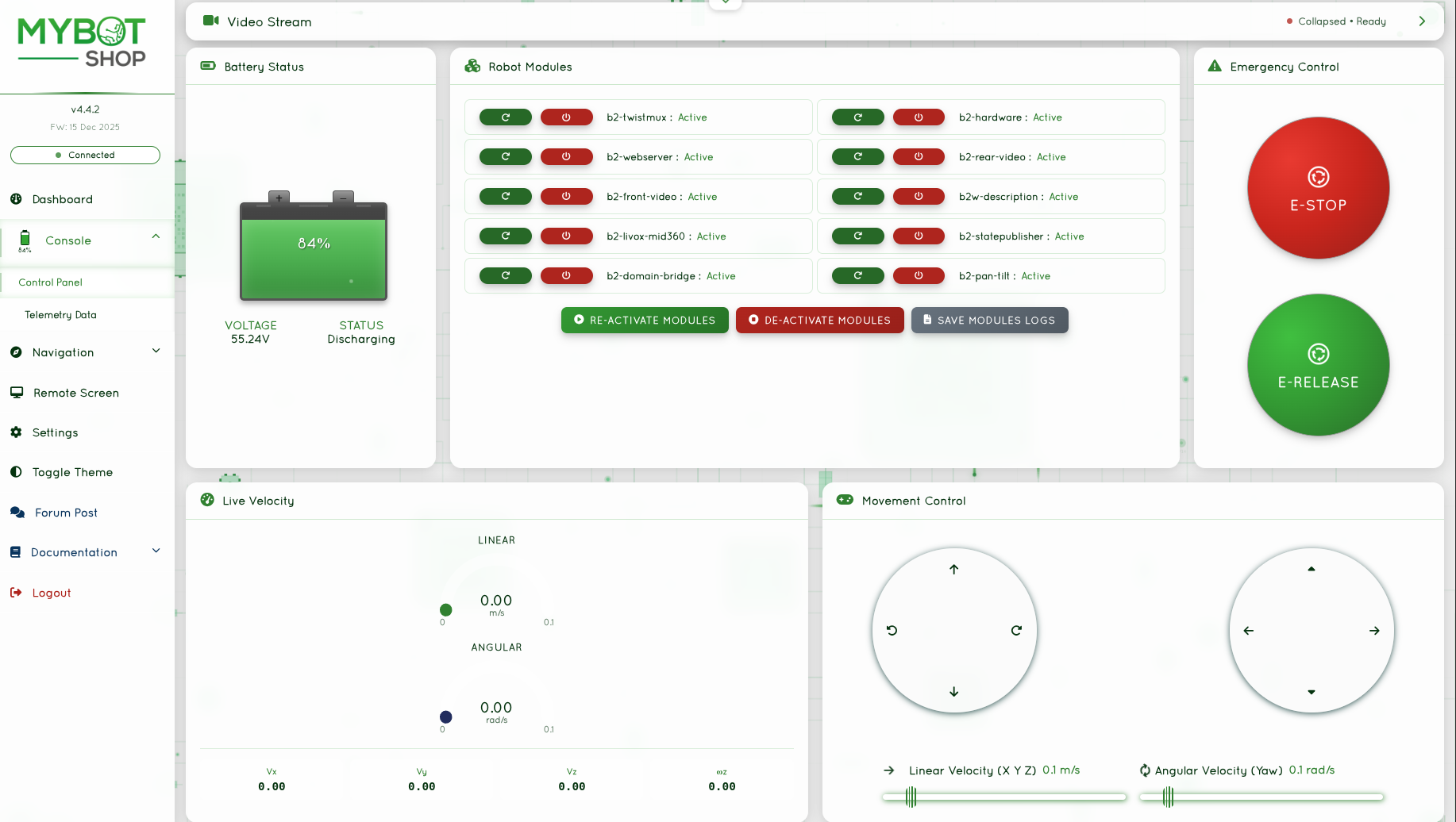

The webserver module comes pre-installed and should be accessible directly at https://192.168.123.164:9000/ or via the WiFi IP to which the robot is connected.

Username: admin
Password: mybotshop

HTTP/HTTPS server with authentication
VNC desktop streaming (1920x1080)
ROS bridge WebSocket interface (port 9090)
GPS waypoint management
Service status monitoring
Rosbag recording
Dynamixel servo control sliders
AI/LLM integration (optional)

View IP Address of the B2W
View System load
Enable/Disable the B2W ROS2 Services
Record System logs
Battery status monitoring
Pre-configured action buttons
Web Joystick for teleoperation
Online video stream (front and rear cameras)

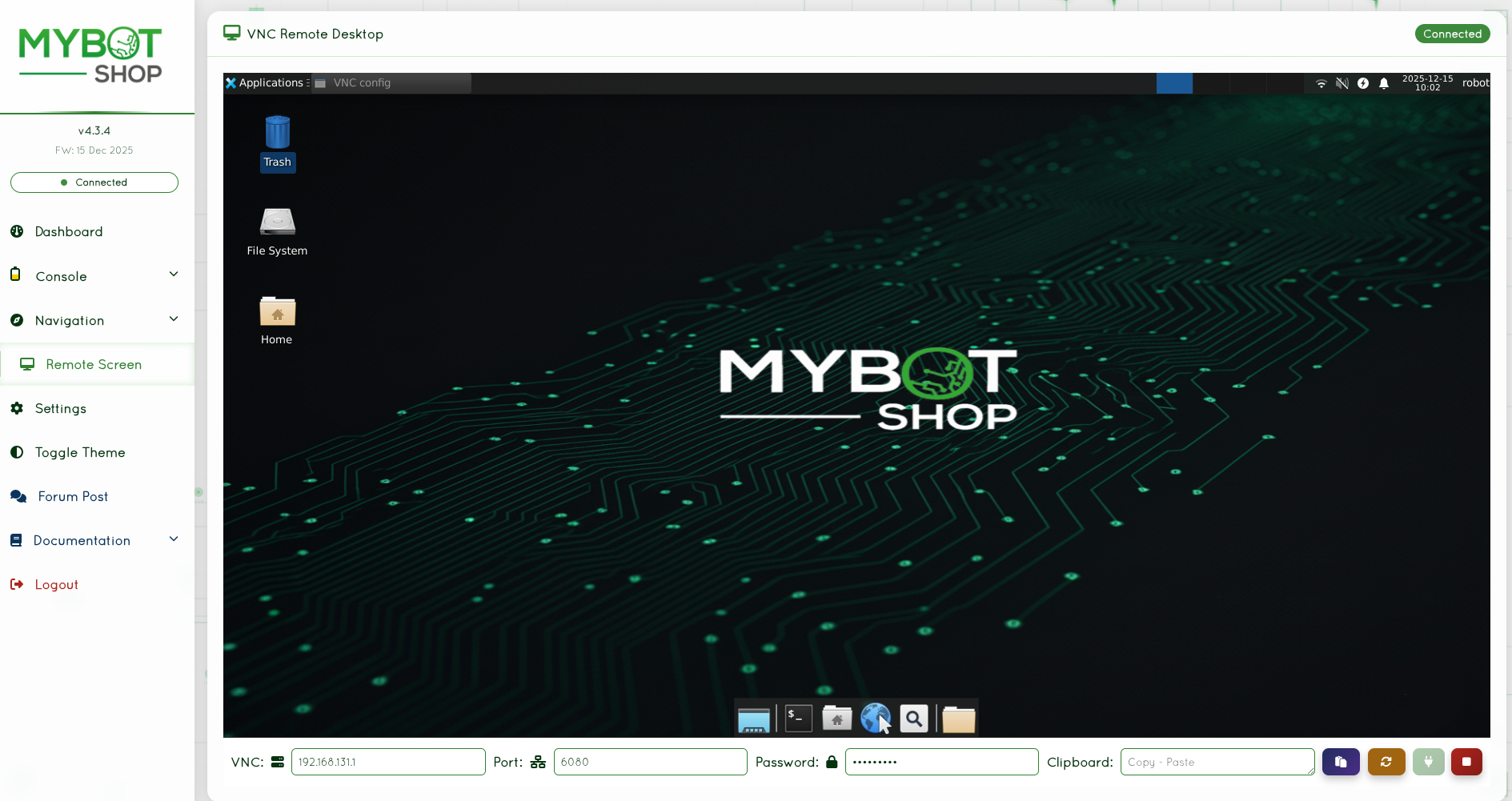

Access on-board screen of the B2W’s computer
VNC password: mybotshop
VNC port: 6080

Web-based terminal access
Command execution interface

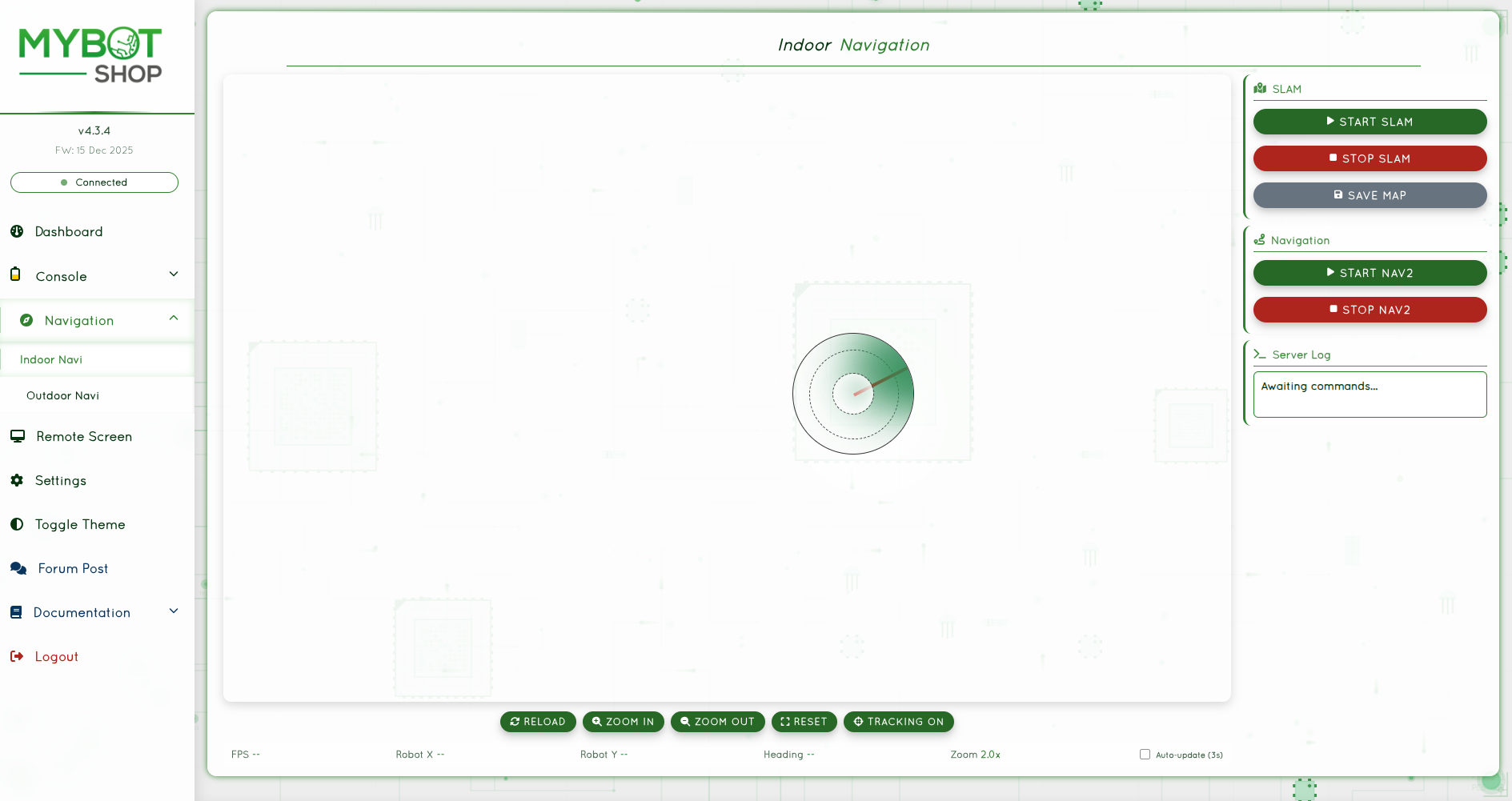

Map visualization and navigation control
Start/Stop SLAM
Save maps
Start/Stop Nav2

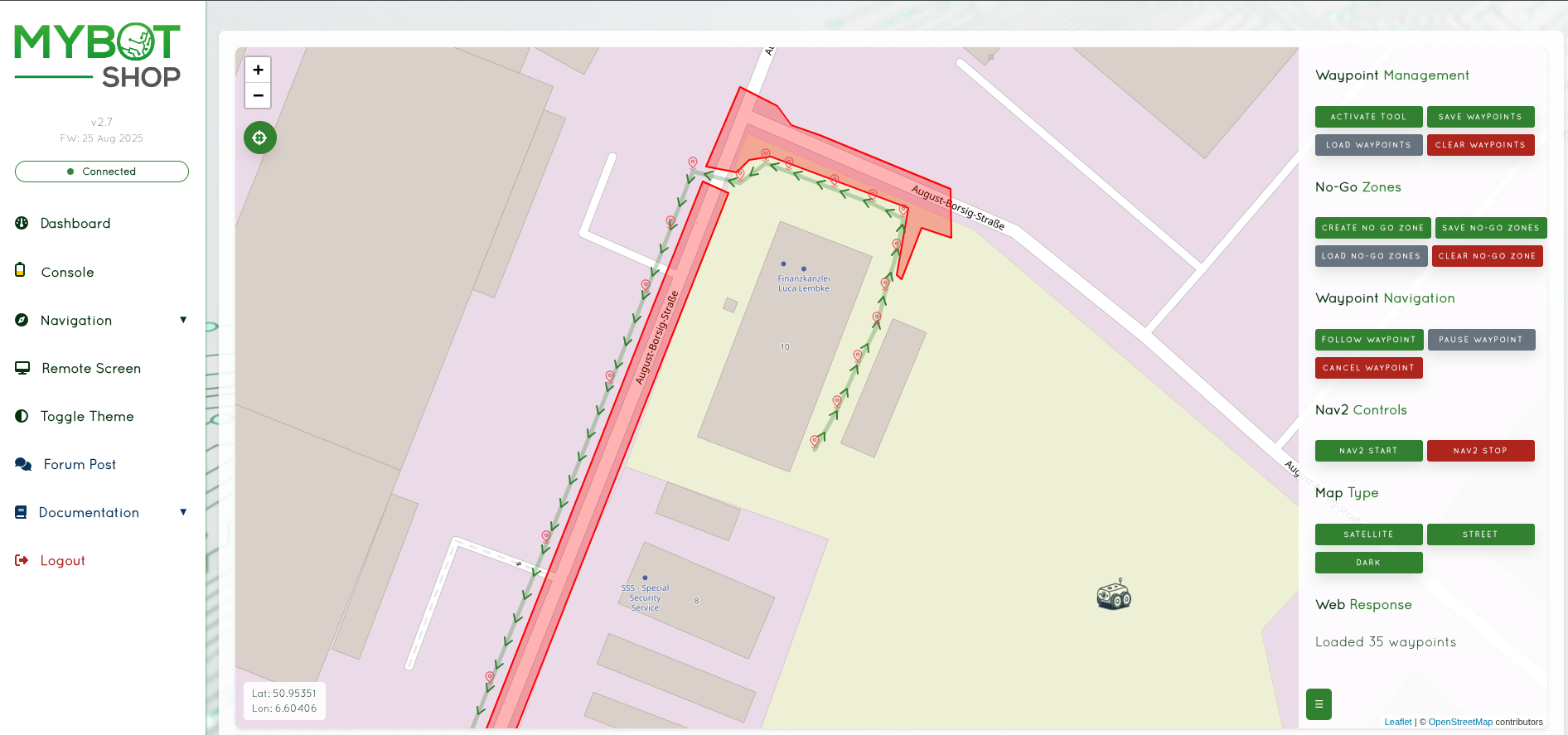

GPS-based outdoor navigation
Waypoint management
No-Go zone configuration

Configuration file: b2_webserver/config/robot_webserver.yaml

web_server_ip: "0.0.0.0"
web_server_port: 9000
web_user: "admin"
web_password: "mybotshop"
robot_cmd_vel: "webserver/cmd_vel"
robot_max_linear_velocity: 0.1
robot_max_angular_velocity: 0.1
robot_services:
  - "b2-twistmux"
  - "b2-hardware"
  - "b2-webserver"
  - "b2-rear-video"
  - "b2-front-video"
  - "b2w-description"
  - "b2-livox-mid360"
  - "b2-statepublisher"
  - "b2-domain-bridge"
  - "b2-pan-tilt"

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W includes a built-in web interface for remote control and monitoring.

Open a browser and navigate to:

http://192.168.123.164:8080

Camera Streams: Live video feeds from onboard cameras
Joystick Control: Virtual joystick for manual navigation
Mode Selection: Robot mode controls (stand up, sit down, gaits)
Servo Control: Dynamixel pan-tilt camera sliders
Status Display: Real-time robot status information

The webserver is configured via the launch file parameters:

# In b2_webserver/launch/webserver.launch.py
webserver_node = Node(
    package='b2_webserver',
    executable='webserver',
    parameters=[{
        'port': 8080,
        'host': '0.0.0.0',
    }],
)

Cannot access webserver:

Verify the service is running:
```
systemctl status b2-webserver
```
Check network connectivity:
```
ping 192.168.123.164
```
Verify port is open:
```
ss -tlnp | grep 8080
```

Teleoperation

Humble

Command Line Interface

This requires the installation of the ROS2 Modules on B2. To teleoperate the B2W, run the following command:

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  cmd_vel:=/b2_unit_001/hardware/cmd_vel

Note

Replace b2_unit_001 with your robot’s namespace. Reduce speed by pressing z until 0.1 for safe indoor operation.

The twist multiplexer arbitrates between multiple velocity command sources:

Source	Priority	Timeout
E-Stop Lock	255	None
Steamdeck Joy	20	0.5s
Logitech Joy	15	0.5s
Webserver	10	0.5s
Interactive Marker	7	0.5s
External cmd_vel	5	0.5s
Autonomous High	3	0.5s
Autonomous Mid	2	0.5s
Autonomous Low	1	0.5s

ros2 launch b2_control teleop.launch.py

Configuration file: b2_control/config/teleop_ps4.yaml

The b2_steamdeck package enables wireless teleoperation using a Steam Deck as a portable controller with audio feedback.

Movement (requires L1 held):

Input	Action
L1 + Left Stick	Linear X/Y movement
L1 + Right Stick X	Angular rotation
R1 + Sticks	Turbo mode (faster speeds)

Robot Commands:

Button Combo	Action
L2 + D-Pad Up	Stand up
L2 + D-Pad Down	Sit down

Speed Configuration:

Mode	Linear X	Linear Y	Angular
Normal	0.7 m/s	0.6 m/s	0.8 rad/s
Turbo	1.0 m/s	1.0 m/s	0.8 rad/s

Launch Steam Deck teleop:

ros2 launch b2_steamdeck system.launch.py

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W supports multiple teleoperation methods.

The default controller is mapped for Xbox-compatible gamepads:

Input	Action
Left Stick	Linear velocity (forward/backward, strafe)
Right Stick	Angular velocity (rotation)
A Button	Stand up
B Button	Sit down
X Button	Recovery mode
Y Button	Toggle gait mode

Launch teleop node:

ros2 launch b2_bringup teleop.launch.py

For keyboard teleoperation:

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  --ros-args --remap cmd_vel:=/b2_unit_001/cmd_vel

Use the built-in webserver joystick at:

http://192.168.123.164:8080

The B2W accepts standard Twist messages:

ros2 topic pub /b2_unit_001/cmd_vel geometry_msgs/msg/Twist \
  "{linear: {x: 0.5, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.3}}"

Visualization

Humble

RViz2 Visualization

To visualize the robot state in RViz2:

ros2 launch b2_viz view_robot.launch.py

Standard B2 (legged):

export B2_DESC=1
ros2 launch b2_description b2_description.launch.py

Wheeled B2W:

ros2 launch b2_description b2w_description.launch.py

export B2_DESC=1
ros2 run xacro xacro \
  /opt/mybotshop/src/mybotshop/b2_description/xacro/robot.xacro \
  > /opt/mybotshop/src/mybotshop/b2_description/xacro/b2.urdf

To debug the TF tree:

ros2 run rqt_gui rqt_gui --ros-args \
  --remap tf:=/b2_unit_001/tf \
  tf_static:=/b2_unit_001/tf_static

To view the robot’s URDF model:

ros2 launch b2_description b2w_description.launch.py

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

Launch the visualization tools for the B2W.

View the robot URDF model:

ros2 launch b2_description display.launch.py

With Z1 arm enabled:

export B2_Z1=1
ros2 launch b2_description display.launch.py

Launch complete visualization with sensor data:

ros2 launch b2_bringup rviz.launch.py

The default RViz configuration includes:

Robot model visualization
TF tree display
LaserScan from LiDAR
PointCloud2 visualization
Camera image displays
Odometry arrows
Path visualization

Custom configurations are stored in:

b2_bringup/rviz/

View the transform tree:

ros2 run tf2_tools view_frames

# Or real-time in terminal
ros2 run tf2_ros tf2_echo base_link odom

Rigs

Humble

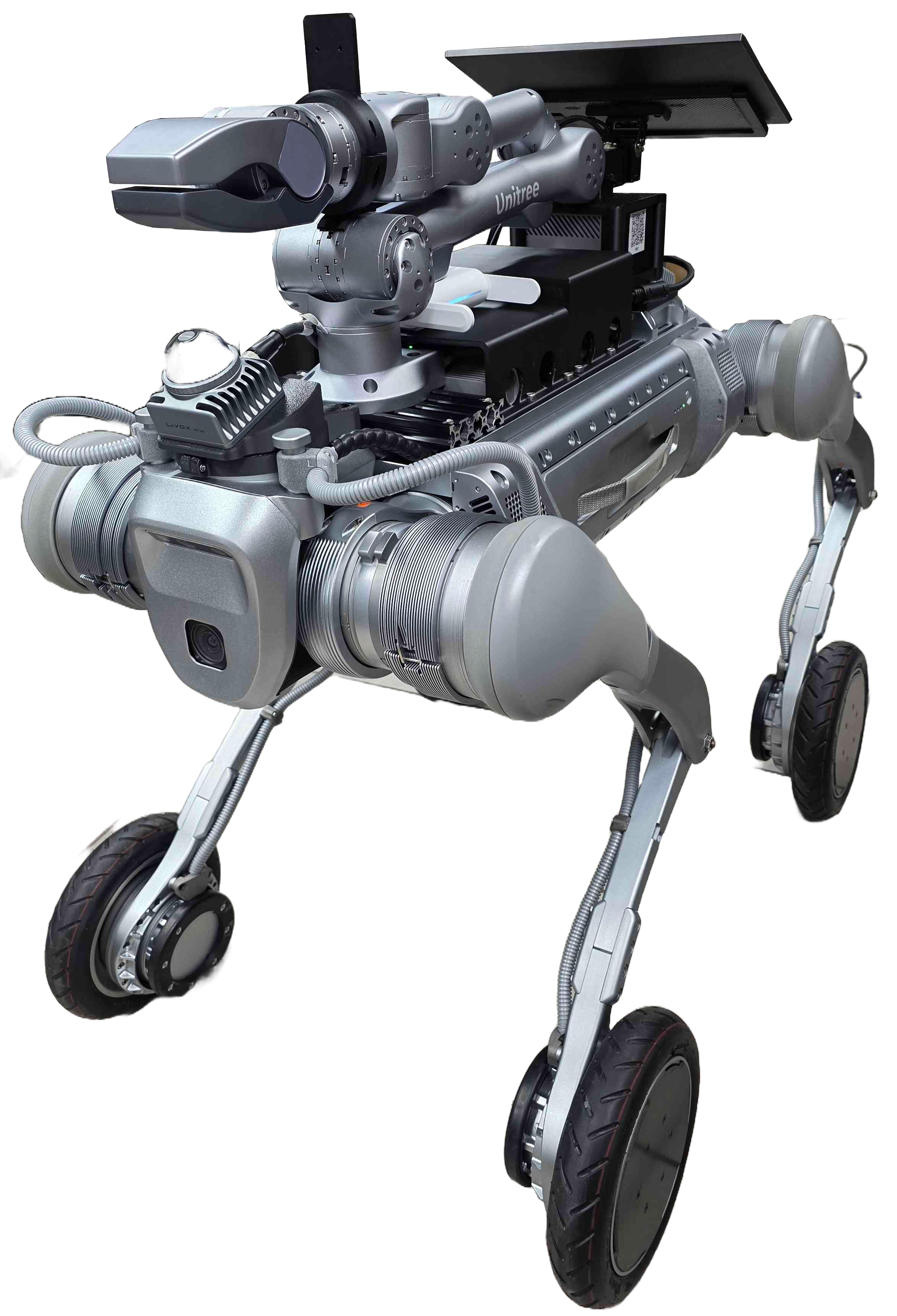

The B2-W features specialized wheeled feet, combining speed, adaptability, and cutting-edge design. Engineered to navigate various terrains and tackle complex tasks with ease, it pushes the boundaries of robotic mobility, offering enhanced efficiency and versatility in motion.

Maximum speed: 50rad/s wheel velocity
Weight (With Battery): About 85kg
Standing Height: 758mm
Folded Height: 450mm

The B2W can switch between various gaits suitable for wheeled locomotion:

# Set trotting gait for wheel movement
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'gait_trot'}"

# Set flat terrain walking mode
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'gait_flatwalk'}"

The B2-W supports various payload configurations:

Maximum Standing Load: About 40kg
Continuous Walking Load: About 120kg

Additional hardware can be mounted on the robot’s back including:

Unitree Z1 robotic arm
Pan-tilt camera systems
Sensor arrays
Custom payloads

The default rig configuration includes a pan-tilt camera system controlled via Dynamixel servos.

Servo Configuration:

Servo 0 (Pan): Range 1150-3200, Default 2170
Servo 1 (Tilt): Range 230-900, Default 565

Control via webserver sliders or ROS2 topics:

# Center pan servo
ros2 topic pub --once /dynamixel/servo_0/command \
  std_msgs/msg/Float64 "data: 2170"

# Center tilt servo
ros2 topic pub --once /dynamixel/servo_1/command \
  std_msgs/msg/Float64 "data: 565"

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2-W features specialized wheeled feet, combining speed, adaptability, and cutting-edge design.

Maximum speed: 50rad/s wheel velocity
Weight (With Battery): About 85kg
Standing Height: 758mm
Folded Height: 450mm

The B2W can switch between various gaits suitable for wheeled locomotion:

# Set trotting gait for wheel movement
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'gait_trot'}"

# Set flat terrain walking mode
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'gait_flatwalk'}"

The B2-W supports various payload configurations:

Maximum Standing Load: About 40kg
Continuous Walking Load: About 120kg

Additional hardware can be mounted including:

Unitree Z1 robotic arm
Pan-tilt camera systems
Sensor arrays
Custom payloads

The default rig configuration includes a pan-tilt camera system controlled via Dynamixel servos.

Servo Configuration:

Servo 0 (Pan): Range 1150-3200, Default 2170
Servo 1 (Tilt): Range 230-900, Default 565

Control via webserver sliders or ROS 2 topics:

# Center pan servo
ros2 topic pub --once /dynamixel/servo_0/command \
  std_msgs/msg/Float64 "data: 2170"

# Center tilt servo
ros2 topic pub --once /dynamixel/servo_1/command \
  std_msgs/msg/Float64 "data: 565"

Manipulation

Humble

Important

EXPERIMENTAL: The Z1 driver is under active development.

If your B2W is equipped with the Unitree Z1 arm:

Enable the arm:

ros2 service call /b2_unit_001/z1/enable std_srvs/srv/Trigger

Send trajectory command:

ros2 topic pub --once /b2_unit_001/z1/joint_trajectory \
  trajectory_msgs/msg/JointTrajectory "{
    joint_names: ['joint1', 'joint2', 'joint3',
      'joint4', 'joint5', 'joint6', 'jointGripper'],
    points: [{
      positions: [0.0, 1.57, -1.57, 0.0, 0.0, 0.0, 0.0],
      time_from_start: {sec: 3, nanosec: 0}
    }]
  }"

Disable the arm:

ros2 service call /b2_unit_001/z1/disable std_srvs/srv/Trigger

Name	Type	Description
z1/joint_states	sensor_msgs/JointState	Joint positions, velocities, efforts
z1/joint_trajectory	trajectory_msgs/JointTrajectory	Trajectory commands
z1/enable	std_srvs/Trigger	Enable arm control
z1/disable	std_srvs/Trigger	Disable arm

For detailed Z1 arm specifications, refer to the Unitree Z1 documentation.

Enable Z1 in the robot description:

export B2_Z1=1
ros2 launch b2_description display.launch.py

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

Important

EXPERIMENTAL: The Z1 driver is under active development.

If your B2W is equipped with the Unitree Z1 arm:

Enable the arm:

ros2 service call /b2_unit_001/z1/enable std_srvs/srv/Trigger

Send trajectory command:

ros2 topic pub --once /b2_unit_001/z1/joint_trajectory \
  trajectory_msgs/msg/JointTrajectory "{
    joint_names: ['joint1', 'joint2', 'joint3',
      'joint4', 'joint5', 'joint6', 'jointGripper'],
    points: [{
      positions: [0.0, 1.57, -1.57, 0.0, 0.0, 0.0, 0.0],
      time_from_start: {sec: 3, nanosec: 0}
    }]
  }"

Disable the arm:

ros2 service call /b2_unit_001/z1/disable std_srvs/srv/Trigger

Name	Type	Description
z1/joint_states	sensor_msgs/JointState	Joint positions, velocities, efforts
z1/joint_trajectory	trajectory_msgs/JointTrajectory	Trajectory commands
z1/enable	std_srvs/Trigger	Enable arm control
z1/disable	std_srvs/Trigger	Disable arm

Enable Z1 in the robot description:

export B2_Z1=1
ros2 launch b2_description display.launch.py

Navigation

Humble

The B2W uses the Nav2 navigation stack for autonomous navigation.

Run SLAM to create a 2D occupancy grid map using the LiDAR sensor:

ros2 launch b2_nav2 slam.launch.py

Drive the robot slowly (recommended 0.2 m/s) using the joystick controller or keyboard teleop to build the map:

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  cmd_vel:=/b2_unit_001/controls/cmd_vel

Once satisfied with the map, save it using:

ros2 run nav2_map_server map_saver_cli -f \
  /opt/mybotshop/src/mybotshop/b2_nav2/maps/custom_map \
  --ros-args --remap map:=/b2_unit_001/map

Note

Replace b2_unit_001 with your robot’s namespace. Maps are saved to the b2_nav2/maps/ directory. After saving, rebuild the workspace with colcon build --symlink-install so the new map can be found.

SLAM Configuration:

Configuration file: b2_nav2/param/nav2_slam.yaml

slam_toolbox:
  ros__parameters:
    solver_plugin: solver_plugins::CeresSolver
    resolution: 0.05
    max_laser_range: 40.0
    mode: mapping

Run odometry-based navigation without a pre-built map. This mode navigates in the global map frame using only odometry for localization:

ros2 launch b2_nav2 odom_navi.launch.py

This is useful for relative navigation where you don’t have a map of the environment yet.

Use a pre-built 2D map for autonomous navigation with AMCL localization:

ros2 launch b2_nav2 map_navi.launch.py

This launches the full Nav2 stack including:

Map Server - loads pre-built occupancy grid maps
AMCL - Adaptive Monte Carlo Localization
Controller Server - path following (DWB controller)
Planner Server - global path planning (NavFn)
Behavior Server - recovery behaviors
Waypoint Follower - for multi-point navigation

For outdoor GPS-based navigation:

ros2 launch b2_nav2 gps_navi.launch.py

Launch File	Description
slam.launch.py	2D SLAM mapping mode
odom_navi.launch.py	Odometric navigation (no map)
map_navi.launch.py	Full autonomous navigation with map
gps_navi.launch.py	GPS-based outdoor navigation

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W supports autonomous navigation using Nav2.

Create a map using SLAM:

ros2 launch b2_navigation slam.launch.py

Save the map when complete:

ros2 run nav2_map_server map_saver_cli -f ~/maps/my_map

Localize on a saved map:

ros2 launch b2_navigation localization.launch.py \
  map:=~/maps/my_map.yaml

Launch full navigation stack:

ros2 launch b2_navigation navigation.launch.py \
  map:=~/maps/my_map.yaml

Via RViz2:

Use the “2D Goal Pose” tool to send navigation goals.

Via Command Line:

ros2 action send_goal /navigate_to_pose \
  nav2_msgs/action/NavigateToPose \
  "{pose: {header: {frame_id: 'map'}, pose: {position: {x: 1.0, y: 2.0, z: 0.0}, orientation: {w: 1.0}}}}"

The B2W provides multiple odometry sources:

/b2_unit_001/odom - Leg odometry
/b2_unit_001/odom_imu - IMU-fused odometry
/odometry/filtered - EKF filtered odometry (if configured)

Sensors

Humble

The B2W is equipped with dual Livox Mid360 LiDAR sensors for 3D perception.

Network Configuration:

Sensor	IP Address
Livox Mid360 (Front)	192.168.123.120
Livox Mid360 (Rear)	192.168.123.121

Launch Options:

# Launch both LiDARs
ros2 launch b2_lidars livox_mid360.launch.py lidar_position:=both

# Launch front only
ros2 launch b2_lidars livox_mid360.launch.py lidar_position:=front

# Launch rear only
ros2 launch b2_lidars livox_mid360.launch.py lidar_position:=rear

Launch Arguments:

Argument	Default	Description
lidar_position	both	front, rear, or both
xfer_format	0	Data transfer format
publish_freq	10.0	Publishing frequency (Hz)
namespace		Topic namespace

Published Topics:

Topic	Type
livox/front/lidar	sensor_msgs/PointCloud2
livox/rear/lidar	sensor_msgs/PointCloud2
livox/front/imu	sensor_msgs/Imu
livox/rear/imu	sensor_msgs/Imu
scan	sensor_msgs/LaserScan

The B2W can be equipped with Intel RealSense D435i depth cameras.

For RealSense documentation, see: https://github.com/IntelRealSense/realsense-ros

The b2_dynamixel package controls Dynamixel servos for pan-tilt mechanisms using Protocol 2.0.

Hardware Setup:

Supported Servos: XM, XH, XC, XL430, XW series
Interface: U2D2 USB adapter
Serial Port: /dev/b2/dynamixel
Baud Rate: 57600

Configuration:

Configuration file: b2_dynamixel/config/dynamixel.yaml

dynamixel_driver:
  ros__parameters:
    port: '/dev/b2/dynamixel'
    baudrate: 57600
    servo_ids: [0, 1]
    position_min: [1150, 230]
    position_max: [3200, 900]
    profile_velocity: 100
    profile_acceleration: 50
    publish_rate: 20.0
    position_topic_prefix: 'dynamixel/servo'
    feedback_topic: 'dynamixel/joint_states'

Topics and Services:

Topic/Service	Type	Description
dynamixel/servo_0/command	Float64	Pan (1150-3200)
dynamixel/servo_1/command	Float64	Tilt (230-900)
dynamixel/joint_states	JointState	Positions (rad)
dynamixel/reboot	Trigger	Clear errors

Usage:

# Launch driver
ros2 launch b2_dynamixel dynamixel.launch.py

# Center pan servo (default: 2170)
ros2 topic pub --once /dynamixel/servo_0/command \
  std_msgs/msg/Float64 "data: 2170"

# Center tilt servo (default: 565)
ros2 topic pub --once /dynamixel/servo_1/command \
  std_msgs/msg/Float64 "data: 565"

# Read joint states
ros2 topic echo /dynamixel/joint_states

# Reboot servos (clear hardware errors)
ros2 service call /dynamixel/reboot std_srvs/srv/Trigger

Udev Rules:

To create persistent device symlinks:

echo 'SUBSYSTEM=="tty", ATTRS{idVendor}=="0403", \
  ATTRS{idProduct}=="6014", SYMLINK+="b2/dynamixel", \
  MODE="0666"' | sudo tee /etc/udev/rules.d/99-dynamixel.rules
sudo udevadm control --reload-rules
sudo udevadm trigger

Important

EXPERIMENTAL: The Z1 driver is under active development.

The b2_z1 package provides a ROS 2 driver for the Unitree Z1 robotic arm.

Quick Start:

# Launch the driver
ros2 launch b2_z1 z1.launch.py

# Enable the arm (required before sending commands)
ros2 service call /b2_unit_001/z1/enable std_srvs/srv/Trigger

# Send trajectory command
ros2 topic pub --once /b2_unit_001/z1/joint_trajectory \
  trajectory_msgs/msg/JointTrajectory "{
    joint_names: ['joint1', 'joint2', 'joint3',
      'joint4', 'joint5', 'joint6', 'jointGripper'],
    points: [{
      positions: [0.0, 1.57, -1.57, 0.0, 0.0, 0.0, 0.0],
      time_from_start: {sec: 3, nanosec: 0}
    }]
  }"

# Disable the arm
ros2 service call /b2_unit_001/z1/disable std_srvs/srv/Trigger

Topics and Services:

Name	Type	Description
z1/joint_states	sensor_msgs/JointState	Joint positions
z1/joint_trajectory	trajectory_msgs/JointTrajectory	Commands
z1/enable	std_srvs/Trigger	Enable arm
z1/disable	std_srvs/Trigger	Disable arm

URDF Integration:

Enable Z1 in the robot description:

export B2_Z1=1
ros2 launch b2_description display.launch.py

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W platform includes multiple sensor systems.

The robot is equipped with front and rear Livox Mid360 LiDAR units.

Network Configuration:

Front LiDAR: 192.168.123.120
Rear LiDAR: 192.168.123.121

Topics:

Topic	Type
/livox/front/lidar	sensor_msgs/PointCloud2
/livox/rear/lidar	sensor_msgs/PointCloud2
/livox/front/imu	sensor_msgs/Imu
/livox/rear/imu	sensor_msgs/Imu

Depth camera for close-range perception.

Topics:

Topic	Type
/camera/color/image_raw	sensor_msgs/Image
/camera/depth/image_rect_raw	sensor_msgs/Image
/camera/depth/color/points	sensor_msgs/PointCloud2
/camera/imu	sensor_msgs/Imu

Launch camera node:

ros2 launch realsense2_camera rs_launch.py

Pan-tilt camera mount using Dynamixel servos.

Configuration:

Servo 0 (Pan): Range 1150-3200, Default 2170
Servo 1 (Tilt): Range 230-900, Default 565

Control Topics:

# Set pan position
ros2 topic pub --once /dynamixel/servo_0/command \
  std_msgs/msg/Float64 "data: 2170"

# Set tilt position
ros2 topic pub --once /dynamixel/servo_1/command \
  std_msgs/msg/Float64 "data: 565"

Joint States:

ros2 topic echo /b2_unit_001/joint_states

IMU Data:

ros2 topic echo /b2_unit_001/imu

Simulation

Humble

The B2W simulation package uses ROS2 Humble with Gazebo Fortress, featuring the complete B2W platform with wheeled quadruped locomotion.

ROS 2 Humble
Gazebo Fortress
gz_ros2_control

ros2 launch b2_gazebo b2_fortress_simulation.launch.py

ros2 launch b2_gazebo b2w_fortress_simulation.launch.py

To kill Gazebo zombie processes:

ros2 run b2_gazebo kill_gz.sh

Configure the simulation using environment variables before launch:

Variable	Default	Description
B2_DESC	1	Enable B2 robot description
B2_Z1	0	Include Z1 robotic arm

To visualize the robot in RViz2:

ros2 launch b2_viz view_robot.launch.py

To teleoperate the B2W using your keyboard:

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  cmd_vel:=/b2_unit_001/hardware/cmd_vel

Note

Reduce speed by pressing z until 0.1 for safe indoor operation.

ros2 action send_goal \
  /joint_effort_controller/follow_joint_trajectory \
  control_msgs/action/FollowJointTrajectory -f "{
    trajectory: {
      joint_names: [
        'FL_hip_joint', 'FL_thigh_joint', 'FL_calf_joint',
        'FR_hip_joint', 'FR_thigh_joint', 'FR_calf_joint',
        'RL_hip_joint', 'RL_thigh_joint', 'RL_calf_joint',
        'RR_hip_joint', 'RR_thigh_joint', 'RR_calf_joint'
      ],
      points: [{
        positions: [0.0, 0.9, -1.5, 0.0, 0.9, -1.5,
          0.0, 0.9, -1.5, 0.0, 0.9, -1.5],
        time_from_start: {sec: 2, nanosec: 0}
      }]
    }
  }"

# Forward
ros2 topic pub /velocity_controller/commands \
  std_msgs/msg/Float64MultiArray \
  "{data: [-1.0, -1.0, -1.0, -1.0]}"

# Backward
ros2 topic pub /velocity_controller/commands \
  std_msgs/msg/Float64MultiArray \
  "{data: [1.0, 1.0, 1.0, 1.0]}"

# Stop
ros2 topic pub /velocity_controller/commands \
  std_msgs/msg/Float64MultiArray \
  "{data: [0.0, 0.0, 0.0, 0.0]}"

If controllers are not starting, manually activate them:

ros2 control set_controller_state \
  -c /b2_unit_001/controller_manager \
  joint_state_broadcaster configure

ros2 control set_controller_state \
  -c /b2_unit_001/controller_manager \
  joint_state_broadcaster activate

Check hardware interfaces:

ros2 control list_hardware_interfaces \
  -c /b2_unit_001/controller_manager

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W can be simulated using Gazebo.

Note

ROS 2 Foxy uses Gazebo 11 (classic). For Ignition Gazebo Fortress, please use ROS 2 Humble.

Launch the B2W in Gazebo 11:

ros2 launch b2_gazebo spawn.launch.py

With Z1 arm:

export B2_Z1=1
ros2 launch b2_gazebo spawn.launch.py

Specify a custom world:

ros2 launch b2_gazebo spawn.launch.py \
  world:=warehouse.world

The simulated robot responds to the same topics as the real hardware:

# Velocity commands
ros2 topic pub /b2_unit_001/cmd_vel geometry_msgs/msg/Twist \
  "{linear: {x: 0.5, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.0}}"

# Mode commands
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'stand_up'}"

Simulated sensors publish to the same topics as the real robot:

LiDAR point clouds
Camera images
IMU data
Joint states

Packages

Humble

The QRE B2W workspace is organized into two main categories: mybotshop (custom MBS packages) and third_party (external dependencies).

Located under: /opt/mybotshop/src/mybotshop/

Package	Version	Description
b2_platform	1.0.0	Unitree SDK hardware interface, odometry, video streaming
b2_interface	1.0.0	Custom ROS 2 services (B2Modes.srv, B2Light.srv)
b2_dynamixel	1.0.0	Dynamixel servo control for pan-tilt mechanism
b2_bringup	1.0.0	System startup and service installer
b2_description	1.0.0	URDF/Xacro robot descriptions
b2_z1	1.0.0	Unitree Z1 arm driver

Package	Version	Description
b2_lidars	1.2.0	Livox Mid360 dual-LiDAR integration
b2_depth_camera	1.2.0	RealSense D435i depth camera
b2_usbcam	1.2.0	USB camera streaming
b2_gps	1.2.0	GPS/GNSS integration (Fixposition, Drotek)
b2_vision_action	1.0.0	Computer vision and object detection

Package	Version	Description
b2_control	1.2.0	Twist mux, teleop, EKF localization
b2_nav2	1.0.0	Nav2 navigation stack, SLAM
b2_webserver	2.0.0	Web-based remote operation interface
b2_viz	1.0.0	RViz visualization configurations
b2_gazebo	1.0.0	Gazebo Fortress simulation
b2_steamdeck	1.0.0	Steam Deck wireless teleoperation

The b2_platform package provides ROS 2 integration with the Unitree SDK 2.0.

Key Launch Files:

hardware.launch.py - Main hardware control
state_publisher.launch.py - Robot state publishing
front_video.launch.py - Front camera streaming
rear_video.launch.py - Rear camera streaming
bridge.launch.py - ROS domain bridging

Configuration:

Configuration file: b2_platform/config/b2_platform.yaml

robot_odom_topic: "platform/odom"
robot_odom_publisher_on: true
transform_odom_frame: "odom"
transform_base_frame: "base_link"
front_camera_port: 1720
rear_camera_port: 1721

Custom ROS2 message and service definitions for B2W packages.

Key Services:

B2Modes.srv - Robot mode control (stand_up, stand_down, gaits, etc.)
B2Light.srv - LED light control

Control system package for robot base. Provides twist mux, teleop configuration, and EKF localization.

Key Launch Files:

twistmux.launch.py - Twist mux configuration
control.launch.py - Full control stack
teleop.launch.py - Teleop configuration
ekf_localization.launch.py - EKF localization

EKF Localization:

ros2 launch b2_control ekf_localization.launch.py

Configuration file: b2_control/config/localization.yaml

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

Overview of the B2W ROS 2 packages.

Package	Description
b2_driver	Hardware interface to Unitree B2 SDK
b2_interface	Custom message and service definitions
b2_description	URDF/Xacro robot description
b2_bringup	Launch files and configuration

Package	Description
livox_ros_driver2	Livox Mid360 LiDAR driver
realsense2_camera	Intel RealSense camera driver
dynamixel_driver	Dynamixel servo control

Package	Description
b2_navigation	Nav2 configuration and launch files
b2_slam	SLAM configuration

b2_interface/srv/B2Modes:

string request_data
---
bool success
string message

Common mode values:

stand_up, stand_down, damp, recovery
gait_idle, gait_trot, gait_flatwalk
speed_low, speed_high
body_height_low, body_height_mid, body_height_high

Debugging

Humble

This section covers debugging tools and techniques for the B2W ROS2 system.

# Verify ROS_DOMAIN_ID
echo $ROS_DOMAIN_ID  # Should be 10

# Check network
ping 192.168.123.165

# Check USB device
ls -la /dev/b2/dynamixel

# Reboot servos
ros2 service call /dynamixel/reboot std_srvs/srv/Trigger

# Verify network
ping 192.168.123.120  # Front
ping 192.168.123.121  # Rear

# Check what environment the service sees
sudo systemctl show b2-hardware \
  --property=Environment

# Verify startup.bash sources correctly
cat /opt/mybotshop/src/mybotshop/b2_bringup/config/setup.bash

Warning

Do not run duplicate nodes! If a service is running (e.g., b2-hardware is active), the corresponding launch file is already running. Manually launching the same file will create duplicate nodes, causing conflicts.

Check Before Manual Launch:

Always run this before manually launching any ROS2 nodes:

# Quick check - shows all active b2 services
systemctl list-units --type=service --state=active | grep b2

# Or check specific service
systemctl is-active b2-hardware && \
  echo "SERVICE RUNNING - DO NOT LAUNCH MANUALLY"

If you accidentally ran duplicate nodes:

# Kill all ROS2 nodes in namespace
pkill -f "ros2.*b2_unit_001"

# Restart the service
sudo systemctl restart b2-hardware

Red marker - The startup job has failed
Green marker - Everything is working correctly
Grey marker - The service has not started yet

# Restart B2 services
sudo systemctl restart b2-hardware
sudo systemctl restart b2-webserver

# View recent logs for a service
journalctl -u b2-hardware -n 50

# Follow logs in real-time
journalctl -u b2-webserver -f

# View logs since last boot
journalctl -u b2-hardware -b

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

This section covers debugging tools and techniques for the B2W ROS 2 system.

# Verify ROS_DOMAIN_ID
echo $ROS_DOMAIN_ID  # Should be 10

# Check network
ping 192.168.123.165

# Check USB device
ls -la /dev/b2/dynamixel

# Reboot servos
ros2 service call /dynamixel/reboot std_srvs/srv/Trigger

# Verify network
ping 192.168.123.120  # Front
ping 192.168.123.121  # Rear

# Check what environment the service sees
sudo systemctl show b2-hardware --property=Environment

# Verify startup.bash sources correctly
cat /opt/mybotshop/src/mybotshop/b2_bringup/config/setup.bash

Warning

Do not run duplicate nodes! If a service is running (e.g., b2-hardware is active), the corresponding launch file is already running.

Check Before Manual Launch:

# Quick check - shows all active b2 services
systemctl list-units --type=service --state=active | grep b2

# Or check specific service
systemctl is-active b2-hardware && \
  echo "SERVICE RUNNING - DO NOT LAUNCH MANUALLY"

If you accidentally ran duplicate nodes:

# Kill all ROS2 nodes in namespace
pkill -f "ros2.*b2_unit_001"

# Restart the service
sudo systemctl restart b2-hardware

sudo systemctl restart b2-hardware
sudo systemctl restart b2-webserver

# View recent logs
journalctl -u b2-hardware -n 50

# Follow logs in real-time
journalctl -u b2-webserver -f

Miscellanious

Humble

The B2W supports various operational modes controlled via ROS 2 services.

Available Modes:

Mode	Description
damp	Damping mode (safe state)
stand_up	Stand up from lying position
stand_down	Lie down safely
recovery	Recovery mode for fault conditions
stop_move	Stop all movement
gait_idle	Idle gait (standing)
gait_trot	Trotting gait
gait_trot_running	Running trot gait
gait_visualwalk	Visual walking mode
gait_flatwalk	Flat terrain walking
speed_low / speed_high	Speed settings
body_height_low/mid/high	Body height settings

Mode Control Examples:

# Stand up
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'stand_up'}"

# Stand down (safe shutdown position)
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'stand_down'}"

# Enter damping mode
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'damp'}"

# Set trotting gait
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'gait_trot'}"

# Recovery mode
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'recovery'}"

Speed Settings:

# Set low speed
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'speed_low'}"

# Set high speed
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'speed_high'}"

Body Height Settings:

# Low body height
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'body_height_low'}"

# Medium body height
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'body_height_mid'}"

# High body height
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'body_height_high'}"

The low-level control for the B2 can be directly accessed via Unitree’s provided examples in their documentation. Running the provided qre_b2 driver with the low-level commands from Unitree examples should work concurrently.

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

The B2W supports various operational modes controlled via ROS 2 services.

Available Modes:

Mode	Description
damp	Damping mode (safe state)
stand_up	Stand up from lying position
stand_down	Lie down safely
recovery	Recovery mode for fault conditions
stop_move	Stop all movement
gait_idle	Idle gait (standing)
gait_trot	Trotting gait
gait_trot_running	Running trot gait
gait_flatwalk	Flat terrain walking
speed_low / speed_high	Speed settings
body_height_low/mid/high	Body height settings

Mode Control Examples:

# Stand up
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'stand_up'}"

# Stand down
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'stand_down'}"

# Enter damping mode
ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'damp'}"

Speed Settings:

ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'speed_low'}"

ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'speed_high'}"

Body Height Settings:

ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'body_height_low'}"

ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'body_height_mid'}"

ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'body_height_high'}"

The low-level control for the B2 can be directly accessed via Unitree’s provided examples in their documentation.

Low-Level Control

The low-level control for the B2 can be directly accessed via Unitree’s provided examples in their documentation. Running the provided qre_b2 driver with the low-level commands from Unitree examples should work concurrently.

Installation

Humble

This section covers the installation procedures for the B2W system.

Note

This should already be configured by the MYBOTSHOP team.

Create workspace:

sudo hostnamectl set-hostname b2-unit-366
sudo mkdir /opt/mybotshop
sudo chown -R unitree:unitree /opt/mybotshop

Set timezone:

sudo timedatectl set-timezone Europe/Berlin
sudo date -s "$(wget --method=HEAD -qSO- \
  --max-redirect=0 google.com 2>&1 | \
  sed -n 's/^ *Date: *//p')"

Run installer:

cd /opt/mybotshop/src/mybotshop
./b2_install.bash

Build workspace:

cd /opt/mybotshop
colcon build --symlink-install
source install/setup.bash

Add to .bashrc:

source /opt/ros/humble/setup.bash
source /opt/mybotshop/src/mybotshop/b2_bringup/config/setup.bash

Install services:

ros2 run b2_bringup startup_installer.py

Configure secondary IP for camera stream:

sudo nano /etc/netplan/01-network-manager-all.yaml

Add the following configuration:

network:
  version: 2
  renderer: NetworkManager
  ethernets:
    eth0:
      dhcp4: false
      addresses: [192.168.123.164/24,192.168.123.170/24]
      nameservers:
        addresses: [114.114.114.114,8.8.8.8]

Apply the configuration:

sudo netplan apply

Source ROS and build:

source /opt/ros/humble/setup.bash
colcon build --symlink-install

Configure network:

Connect to 192.168.123.x network with static IP:

Address: 192.168.123.51
Netmask: 24

Source setup:

source /opt/mybotshop/src/mybotshop/b2_bringup/config/setup.bash

Verify connection:

ping 192.168.123.164
ssh -X unitree@192.168.123.164
# Password: Unitree0408

To sync your development workspace to the robot:

rsync -avP -t --delete -e ssh src \
  unitree@192.168.123.164:/opt/mybotshop

Foxy

Warning

ROS 2 Foxy Fitzroy reached end-of-life in June 2023. We recommend upgrading to ROS 2 Humble for continued support.

This section covers the installation procedures for the B2W system.

Note

This should already be configured by the MYBOTSHOP team.

Create workspace:

sudo hostnamectl set-hostname b2-unit-366
sudo mkdir /opt/mybotshop
sudo chown -R unitree:unitree /opt/mybotshop

Set timezone:

sudo timedatectl set-timezone Europe/Berlin

Run installer:

cd /opt/mybotshop/src/mybotshop
./b2_install.bash

Build workspace:

cd /opt/mybotshop
colcon build --symlink-install
source install/setup.bash

Add to .bashrc:

source /opt/ros/foxy/setup.bash
source /opt/mybotshop/src/mybotshop/b2_bringup/config/setup.bash

Install services:

ros2 run b2_bringup startup_installer.py

Source ROS and build:

source /opt/ros/foxy/setup.bash
colcon build --symlink-install

Configure network:
- Address: 192.168.123.51
- Netmask: 24
Verify connection:

ping 192.168.123.164
ssh -X unitree@192.168.123.164

rsync -avP -t --delete -e ssh src \
  unitree@192.168.123.164:/opt/mybotshop
