B2-W OTT

QRE Advanced B2-W Manipulator

The QRE Advanced B2-W Manipulator is a fully integrated mobile manipulation platform combining the Unitree B2-W wheeled quadruped robot with the Unitree Z1 robotic arm. This system is designed for advanced research and development applications requiring both mobility and manipulation capabilities.

System Overview

The B2-W OTT platform integrates:

  • Unitree B2-W Wheeled Quadruped: High-speed wheeled locomotion with 50rad/s wheel velocity

  • Unitree Z1 Robotic Arm: 6-DOF manipulator with gripper for object manipulation

  • Dual Livox Mid360 LiDAR: Front and rear 3D perception for navigation and mapping

  • Intel RealSense D435i: Depth camera for close-range perception and manipulation

  • Pan-Tilt Camera System: Dynamixel-actuated camera mount for enhanced field of view

Specifications

Physical Dimensions:

  • Standing Height: 758mm

  • Folded Height: 450mm

  • Weight (with battery): About 85kg

Mobility:

  • Maximum Wheel Velocity: 50rad/s

  • Maximum Standing Load: About 40kg

  • Continuous Walking Load: About 120kg

Payload Configuration:

The robot supports various payload configurations including the Z1 arm, pan-tilt camera systems, sensor arrays, and custom payloads.

Quick Start Guide

1. Power On:

Press the battery power button once, then hold for 3 seconds. The robot will initialize and the ROS2 services will start automatically.

2. Verify Services:

systemctl status b2-hardware
systemctl status b2-webserver

3. Access Webserver:

Navigate to http://192.168.123.164:9000 in a web browser for the control interface.

B2 Webserver Dashboard

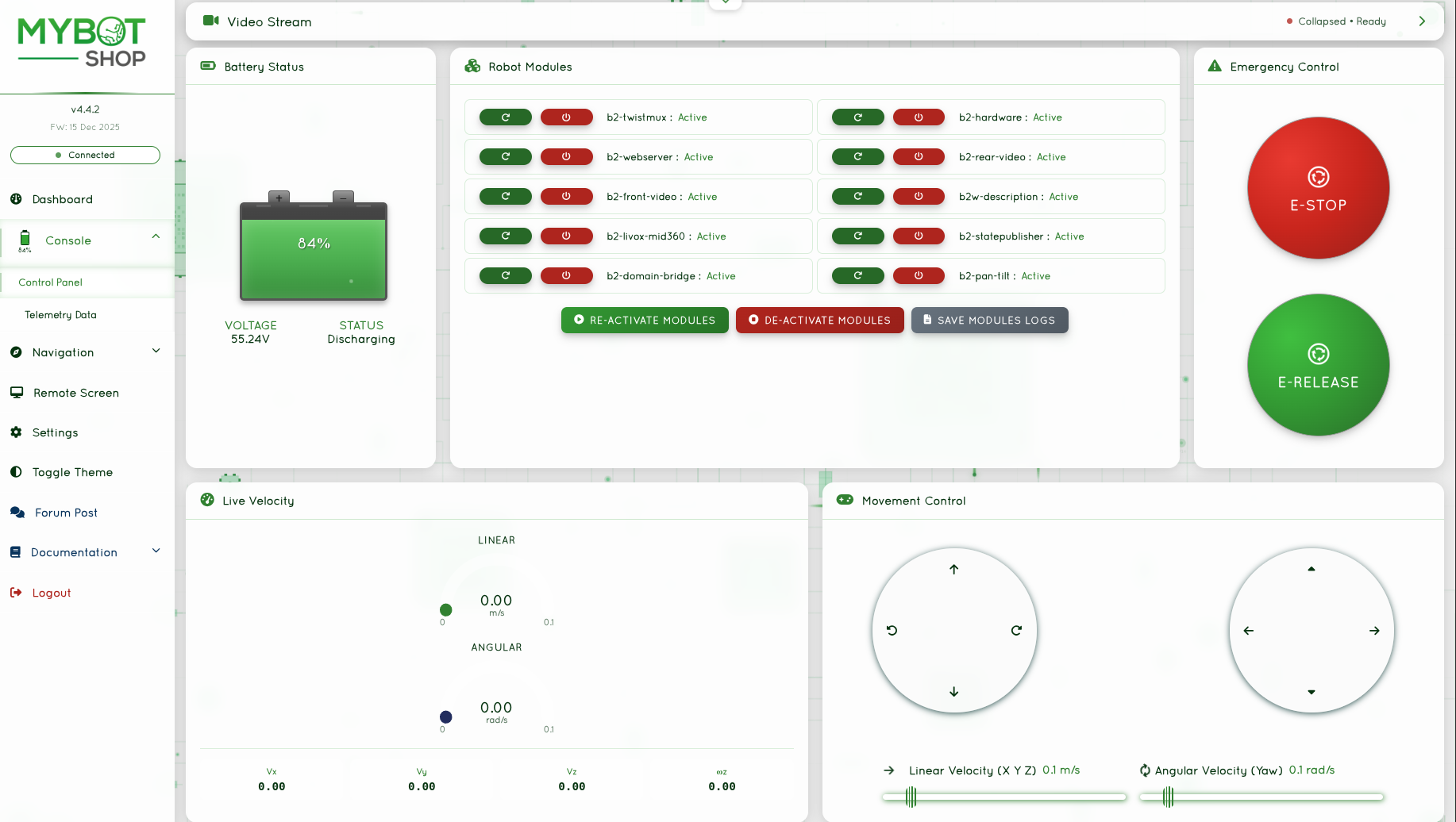

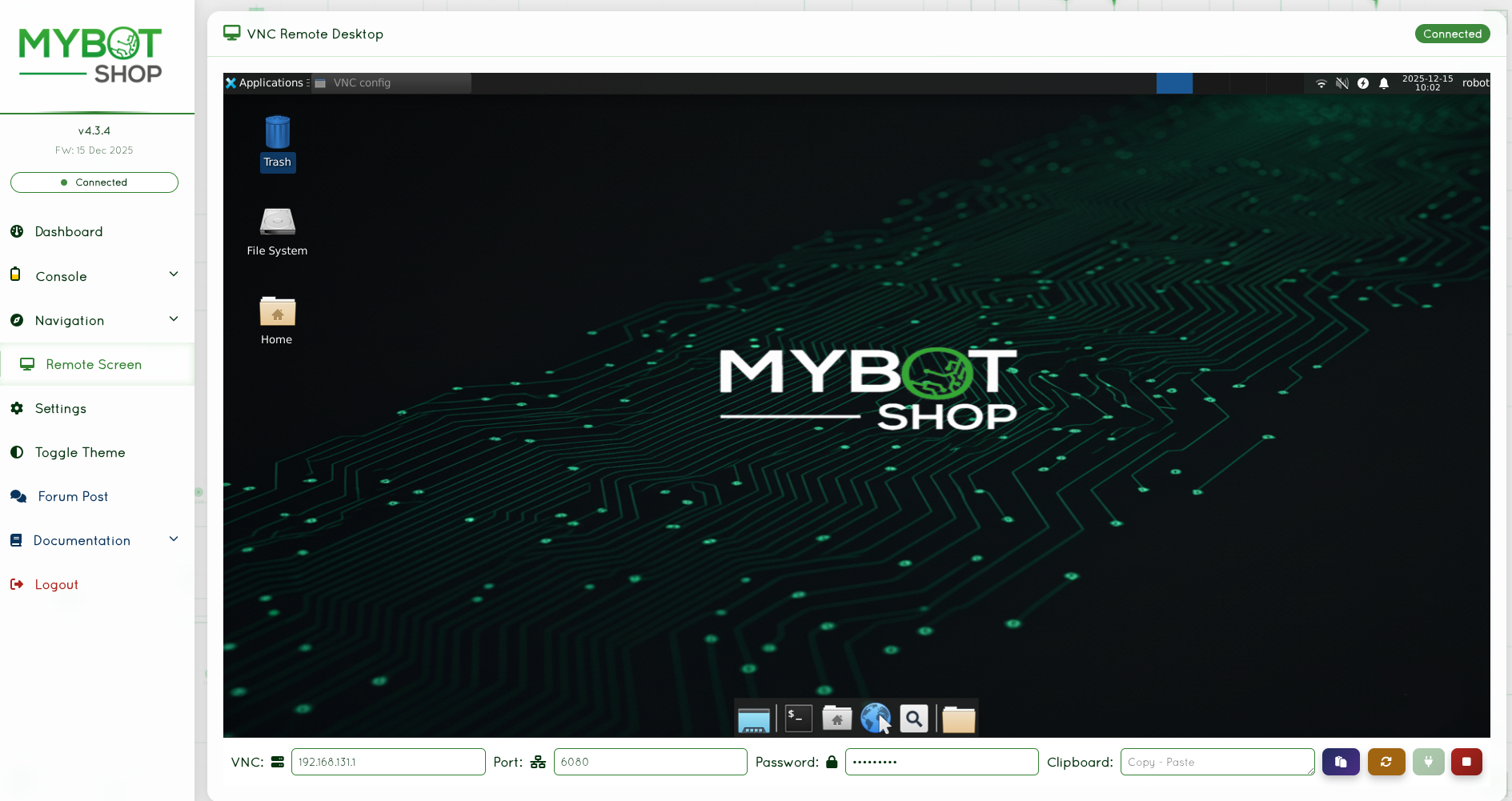

Web Console Web VNC

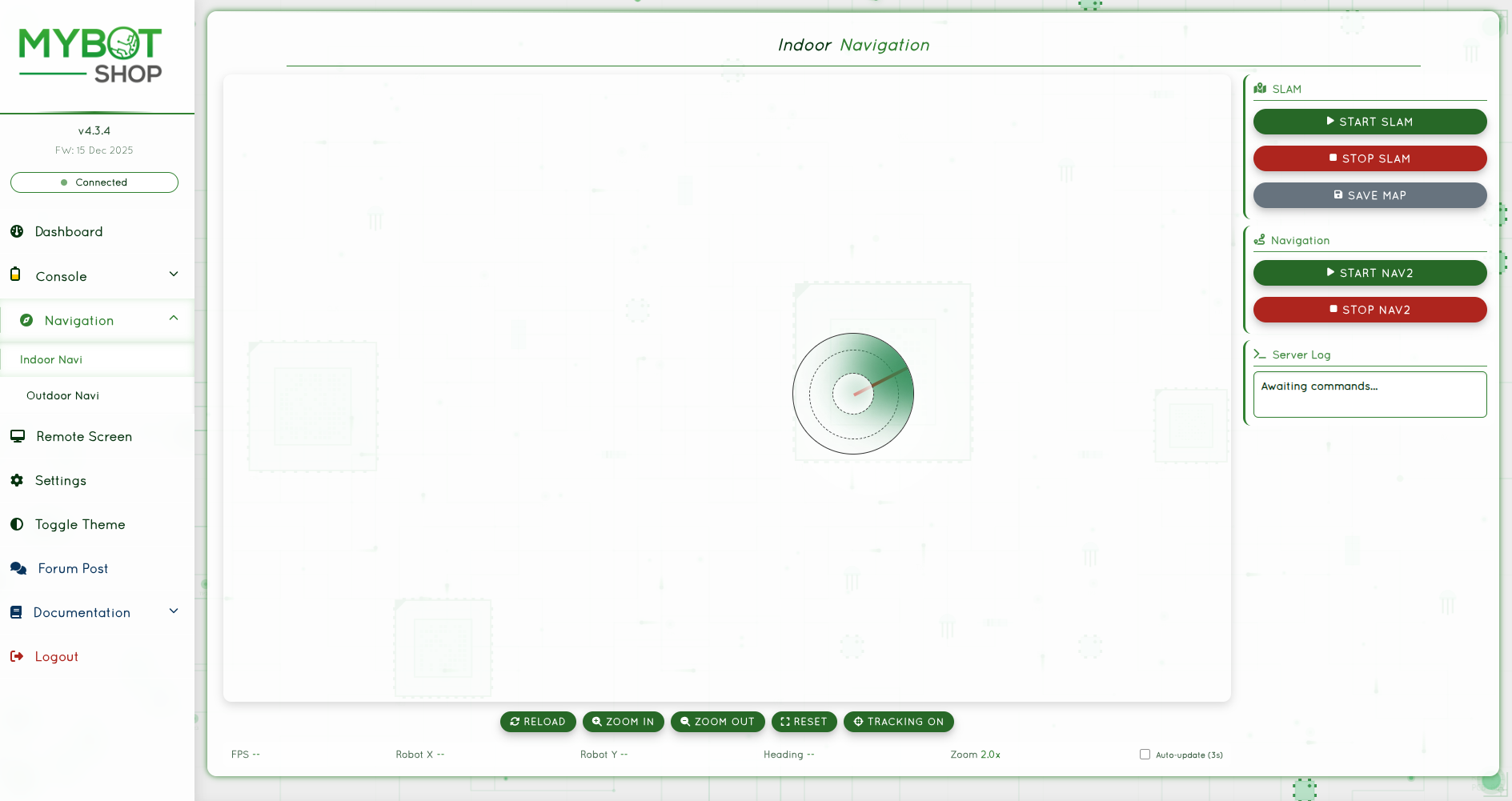

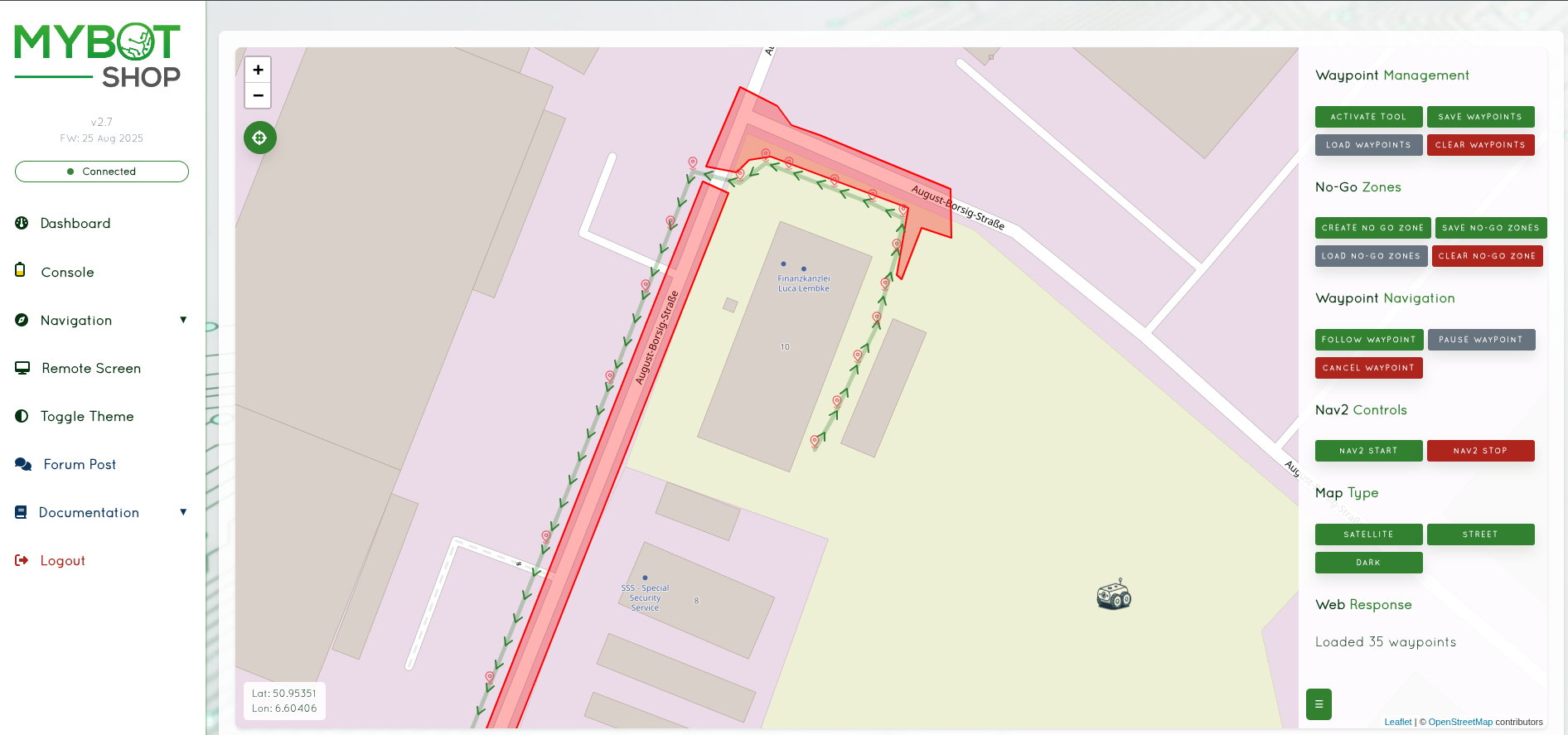

Indoor Navigation Outdoor Navigation

4. Stand Up:

ros2 service call /b2_unit_001/hardware/modes \
  b2_interface/srv/B2Modes "{request_data: 'stand_up'}"

5. Control Movement:

ros2 topic pub /b2_unit_001/cmd_vel geometry_msgs/msg/Twist \
  "{linear: {x: 0.5, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.0}}"

Robot Modes

The B2-W supports various operational modes:

Mode

Description

damp

Damping mode (safe state)

stand_up

Stand up from lying position

stand_down

Lie down safely

recovery

Recovery mode for fault conditions

gait_idle

Idle gait (standing)

gait_trot

Trotting gait

gait_trot_running

Running trot gait

gait_flatwalk

Flat terrain walking

speed_low / speed_high

Speed settings

body_height_low/mid/high

Body height settings

Z1 Arm Control

Important

EXPERIMENTAL: The Z1 driver is under active development.

Enable the arm:

ros2 service call /b2_unit_001/z1/enable std_srvs/srv/Trigger

Send trajectory command:

ros2 topic pub --once /b2_unit_001/z1/joint_trajectory \
  trajectory_msgs/msg/JointTrajectory "{
    joint_names: ['joint1', 'joint2', 'joint3',
      'joint4', 'joint5', 'joint6', 'jointGripper'],
    points: [{
      positions: [0.0, 1.57, -1.57, 0.0, 0.0, 0.0, 0.0],
      time_from_start: {sec: 3, nanosec: 0}
    }]
  }"

Disable the arm:

ros2 service call /b2_unit_001/z1/disable std_srvs/srv/Trigger

Pan-Tilt Camera System

The pan-tilt camera mount uses Dynamixel servos:

  • Servo 0 (Pan): Range 1150-3200, Default 2170

  • Servo 1 (Tilt): Range 230-900, Default 565

Control via webserver sliders or ROS2 topics:

# Center pan servo
ros2 topic pub --once /dynamixel/servo_0/command \
  std_msgs/msg/Float64 "data: 2170"

# Center tilt servo
ros2 topic pub --once /dynamixel/servo_1/command \
  std_msgs/msg/Float64 "data: 565"

Sensor Systems

Livox Mid360 LiDAR:

  • Front LiDAR: 192.168.123.120

  • Rear LiDAR: 192.168.123.121

Topics:

  • /livox/front/lidar - Front point cloud

  • /livox/rear/lidar - Rear point cloud

  • /livox/front/imu - Front IMU

  • /livox/rear/imu - Rear IMU

Intel RealSense D435i:

Topics:

  • /camera/color/image_raw - Color image

  • /camera/depth/image_rect_raw - Depth image

  • /camera/depth/color/points - Point cloud

  • /camera/imu - Camera IMU

Simulation

Launch the B2-W in Gazebo Fortress:

ros2 launch b2_gazebo spawn.launch.py

With Z1 arm:

export B2_Z1=1
ros2 launch b2_gazebo spawn.launch.py

Network Configuration

IP Address

Device

Username

Password

192.168.123.161

B2 MCU

x

x

192.168.123.164

B2 Nvidia Orin NX

unitree

Unitree0408

192.168.123.164:8080

B2 Webserver

admin

mybotshop

192.168.123.120

Livox Mid360 Front

x

x

192.168.123.121

Livox Mid360 Rear

x

x

ROS_DOMAIN_ID is set to 10.

Debugging

Check Services:

systemctl list-units --type=service --state=active | grep b2

View Logs:

journalctl -u b2-hardware -f

Restart Services:

sudo systemctl restart b2-hardware
sudo systemctl restart b2-webserver

Safety Guidelines

Warning

Always maintain a safe distance from the robot during operation. The robot can move quickly and unexpectedly.

  • Keep the emergency stop accessible at all times

  • Ensure the operating area is clear of obstacles and personnel

  • Monitor battery levels to prevent sudden shutdowns

  • Do not exceed the maximum payload capacity

  • Perform regular maintenance checks on mechanical components

For detailed safety information, refer to the safety guidelines section.
